| Engine Manufacturer | Yanmar |
|---|---|
| Number Of Cylinders | 4 |
| Displacement, ltr (Inches³) | 3.32 (203) |
| Rated speed, rpm | 2000 |
| Engine Output – Net, kW (hp) | 39.6 (53) |
| Number Of Carrier Rollers – Each Side | 1 |
| Number Of Track Rollers – Each Side | 4 |
| Track Shoe Width, mm (inches) | 400 (16) |
| Transport Length Mono Boom, mm (ft/in) | 5760 (18 ft 11 in) |
|---|---|
| Transport Height – Maximum, mm (ft/in) | 2540 (8 ft 4 in) |
| Overall Undercarriage Width, mm (ft/in) | 2000 (6 ft 7 in) |
| Track Length On Ground, mm (ft/in) | 1990 (6 ft 6 in) |
| Overall Undercarriage Length, mm (ft/in) | 2500 (8 ft 2 in) |
| Tailswing Radius, mm (ft/in) | 1300 (4 ft 3 in) |
| Ground Clearance, mm (inches) | 325 (13) |
| Dozer Blade Height, mm (inches) | 420 (17) |
| Dozer Blade Width, mm (ft/in) | 2000 (6 ft 7 in) |
| Width over fixed tracks, mm (ft/in) | 2000 (6 ft 7 in) |
| Digging Reach – Mono Boom, mm (ft/in) | 6230 (20 ft 5 in) |
| Dig Height – Mono Boom, mm (ft/in) | 5960 (19 ft 7 in) |
| Dump Height – Mono Boom, mm (ft/in) | 4170 (13 ft 8 in) |
| Dig Depth – Mono Boom, mm (ft/in) | 3770 (12 ft 4 in) |
| Fuel Tank, ltr (gallons (US)) | 120 (31.7) |
|---|---|
| Hydraulic Tank, ltr (gallons (US)) | 80 (21.1) |
| Ground Bearing Pressure, kPa (psi) | 35 (5.1) |
|---|---|
| Swing Speed, rpm | 9.5 |
| Travel Speed – High, kph (mph) | 4.8 (3) |
| Arm Tearout, kN (lbf) | 31.1 (6990) |
| Bucket Breakout, kN (lbf) | 41.1 (9240) |
| Main Pump Flow, lt/min (gallons (US) / min) | 144 (38) |
| Operating Weight, kg (lbs) | 6180 (13620) |
|---|
Featured

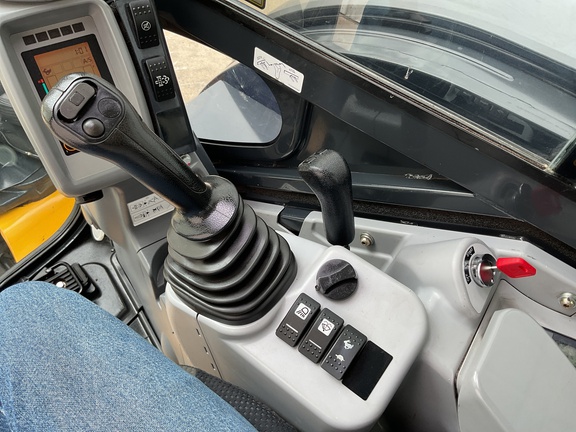

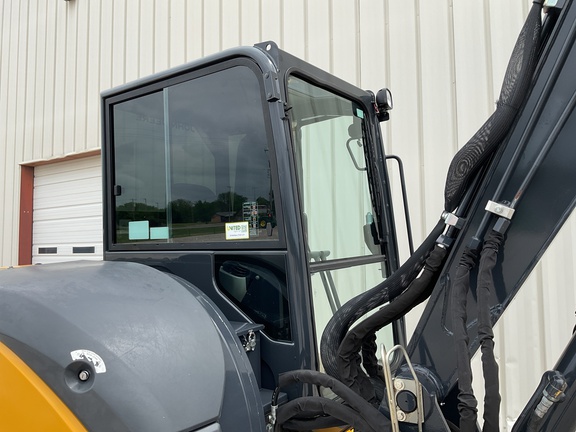

- Operators Station: Cab w/ AC
- Arms: Long Arm
- Tracks: 16″ Rubber Tracks
- Buckets: 24″ Bucket
- Attachments: Hydraulic Thumb
- Blades: w/ Blade
